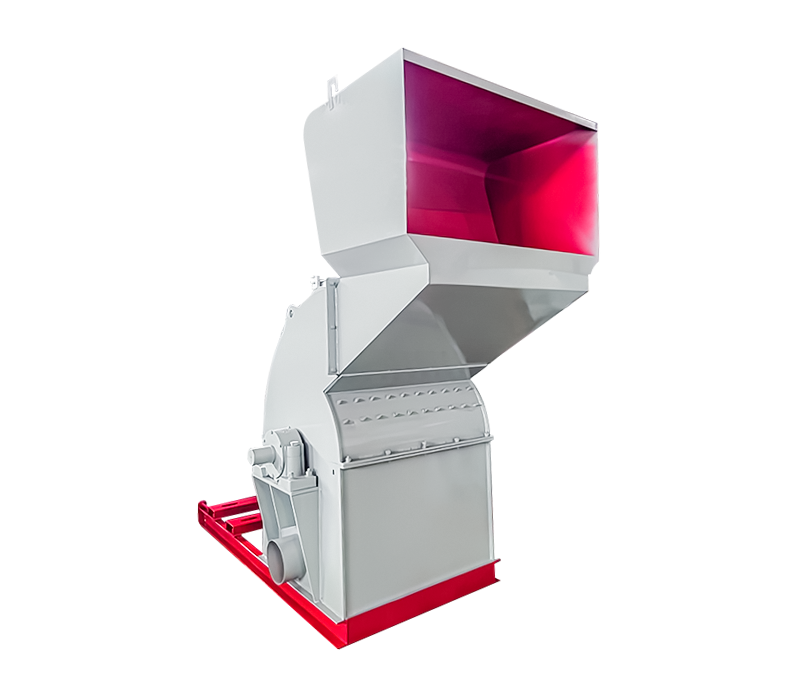

Optimized for agricultural waste (acai berries, straw, corn cobs, etc), this machine crushes fibrous materials into 10-30mm particles using dual-shaft shearing. Equipped with moisture-tolerant rollers and adjustable screens, it processes 2-5 tons/hour of dry biomass. Heavy-duty gearbox and hydraulic feeding ensure reliability for biofuel/compost production. CE-certified with optional cyclone dust collectors.
This industrial-grade biomass crusher adopts the principle of double-axis shearing crushing, which can quickly crush wet/dry biomass raw materials into uniform particles of 10-30mm, providing ideal pre-treatment conditions for subsequent biomass pellet fuel, compost fermentation, biochar preparation, and other processes.
Double-axis shearing crushing system
The low-speed and high-torque double-axis linkage structure is used to achieve high-strength shearing and tearing, which is particularly suitable for processing agricultural and forestry biomass raw materials with high fiber content, easy entanglement, and easy moisture absorption, with high crushing efficiency, and stable output.
Wet-resistant heavy-duty roller group
Equipped with corrosion-resistant, wear-resistant, and anti-humidification rollers, it can stably cope with high-humidity or undried materials, avoid jamming or blockage, and ensure continuous feeding.
Adjustable screen structure
Users can flexibly replace the screen according to different uses to achieve precise control of the particle size of 10-30mm to meet different particle size requirements, such as fuel and fermentation.
High-torque industrial-grade gearbox
The high-strength gearbox structure ensures that the equipment maintains stable power, low vibration, and longer service life even under long-term continuous high-load operation.
Hydraulic forced feeding system
Equipped with a hydraulic propulsion system, it can automatically adjust the material pressing strength to ensure that the material enters the crushing chamber continuously and evenly, improving the overall crushing efficiency.
Applicable to complex agricultural raw materials such as dry-wet mixing, high fiber, and high viscosity, shear crushing + hydraulic feeding + variable frequency speed regulation system, low comprehensive energy consumption, equipment structure shock absorption and noise reduction, controllable dust emission, meeting EU environmental protection standards
| Product Model | TS-1 | TS-2 | TS-4 |
| Capacity | 1 ton/hour | 2 ton/hour | 4 ton/hour |
| Containers | 2*40’HQ | ||
| Gross Weight(Ton) | 51.2 | ||
| Working Power(KW) | 361.5 | ||
| Dimension(mm) | 6400*2700*2400 | ||
1. Tire Dismantling
• Equipment: 380-Type Dismantling Machine
• Input: Whole waste tires (900-1200mm diameter)
• Output: Halved tires for downstream processing
2. Block Preparation
• Equipment: 600-Type Cutting Unit
• Action: Securely cuts halved tires into 50×50mm rubber blocks
• Advantages:
→ Enhances steel wire separation safety
→ Boosts production efficiency
3. Granulation Process
• Equipment: 810 Bearing-Type Low-Temperature Rubber Breaker
• Mechanism:
Twin counter-rotating hollow rollers
Adjustable roller gap controls particle size
Forced feeding system
• Particle Output: 16-40 mesh rubber powder(0.4-1.18mm)
Long Service life
(Use rollers squeeze instead of blade which extend service life)
Large Loading Capacity
High Efficiency
Low Noise
Small Size
Light Weight
Simple and Convenient
Installation and Maintenance
| Type 380 Tire Cutting Machine Unit | |
| Item | Content |
| Size(Length*width*Height) | 300mm*1000mm*1800mm |
| Rotation Speed | 22 Rpm |
| Motor Power | 7.5KW |
| Capacity | 4(tons/h) |
| Operating Voltage | 380V |
| Weight | 1600Kg |
| Type 600 Tire Cutting Machine Unit | |
| Item | Content |
| Size(Length*width*Height) | 2100mm*1800mm*2400mm |
| Rotation Speed | 450 Rpm |
| Motor Power | 39KW |
| Capacity | 4(tons/h) |
| Operating Voltage | 380V |
| Weight | 4600Kg |
| Heavy-duty 810 Bearing-type Low-temperature Rubber Breaker | ||
| Item | Content | |
| Helical Roller: Diameter Length | 810mm*1200mm | |
| Spur Roller: Diameter Length | 710mm*1200mm | |
| Helical Roller Speed | 27.2m/min | |
| Helical Roller Linear Speed | 69.08r/min | |
| Spur Roller Speed | 26.4 m/min | |
| Spur Roller Linear Speed | 54.77 r/min | |
| Roller Linear Speed Ratio | 1.26:1 | |
| Reduction Gearbox Speed Ratio | 27.2:1 | |
| Output 20 Mesh Rubber Powder | 4(tons/h) | |
| Motor | Y2-400m2-8-280kW or 315KW | |
| Size(Length*width*Height) | 6400mmx2700mmx2400mm | |
| Rubber Baffle Method | Steel Plate Roller Side Stopper | |
Determine the customized requirements
Latest blanking
Folding
Workpiece pairing
Welding
Assembly
Commissioning
Surface treatment
Quality inspection
Shipping
Cooperation model, equity share, and investment methods can be negotiated as needed.
Applicable to the situation where sufficient trust cannot be established in the early stage of cooperation; Cooperation term: Fixed term. Note: We directly participate in production to mitigate the risk of equipment failures during operation, the equipment's operational cycle and efficiency.
Conducts a feasibility analysis for the local market.
Provide necessary blueprints and solutions for factory construction as needed.
Provide all legal licenses and documents for local legal operation.
We can provide certain upstream and downstream raw materials and sales channels to establish an internal product distribution network.
Provide calculation and analysis based on the client’s local market. The client is responsible for providing relevant data. The client may also visit the offline factory for inspection.
The client provides installation tools, while we provide engineering guidance for installation and a complete set of onsite installation services.
1 year warranty + 3 to 5 years of maintenance service, with maintenance provided by local service providers.
Payment terms are negotiable, with flexible payment cycles for the balance. For example, 90% upfront, 10% balance, or 80% upfront, 20% balance.
The cooperation model and details will be discussed separately based on the region.
We ensure full supply, and we reserve the final right of interpretation. Commission and maintenance fees are negotiable.
Within 60 days after receiving the deposit.
The main payment method is T/T. For other payment methods, please contact us.
We have our own factory.
In Shangqiu City, Henan Province.
We provide customization services. For specific details, please contact us.
We support OEM and ODM.
We do not support sample customization service for now.
Workers do not need professional skills. We will offer working instruction manual, and our engineers will also provide on-site guidance for several months to help you with the commission and personnel training.
Usually, it takes in 60 days for manufacturing and the delivery depends on the port of arrival. Our port of departure is Lianyungang Port by default and customers can also designate the departure port.
Our warranty period is about 1 year which is also negotiable. We will provide the replacement parts, maintenance support, and instructions for use for workers. We have engineers for on-site installation support. Our engineer can arrive at your factory at any time after installation. It does not have a limitation of time.
Key information such as raw materials, daily processing capacity, project location, etc.
For each project, we will assign an exclusive project team, and there will be a dedicated person in charge to inform the project progress on time.
