This specialized system processes waste engine oil into high-purity fuel oil through catalytic reforming and multi-stage condensation. Featuring a horizontal reactor with 99% conversion efficiency, it integrates water-film desulfurization to neutralize acidic gases, ensuring compliance with emission standards (e.g., sulfur ≤0.3%). Unique dual-catalyst technology enhances oil quality (85-90% yield), producing ASTM-grade diesel. Automated controls monitor distillation parameters in real-time. Ideal for recycling automotive/industrial lubricants, its compact design supports 5-8 tons/day processing with ISO/CE-certified safety systems.
| Product Model | DB-8 | DB-10 |
| Capacity | 8 ton/day | 10 ton/day |
| Containers | 1*FR+2*40’HQ | |
| Gross Weight(Ton) | 45 | 55 |
| Working Power(KW) | 20-30 | |
| Dimension(mm) | Φ2500*8800*18(Furnace) | Φ2500*11000*18(Furnace) |

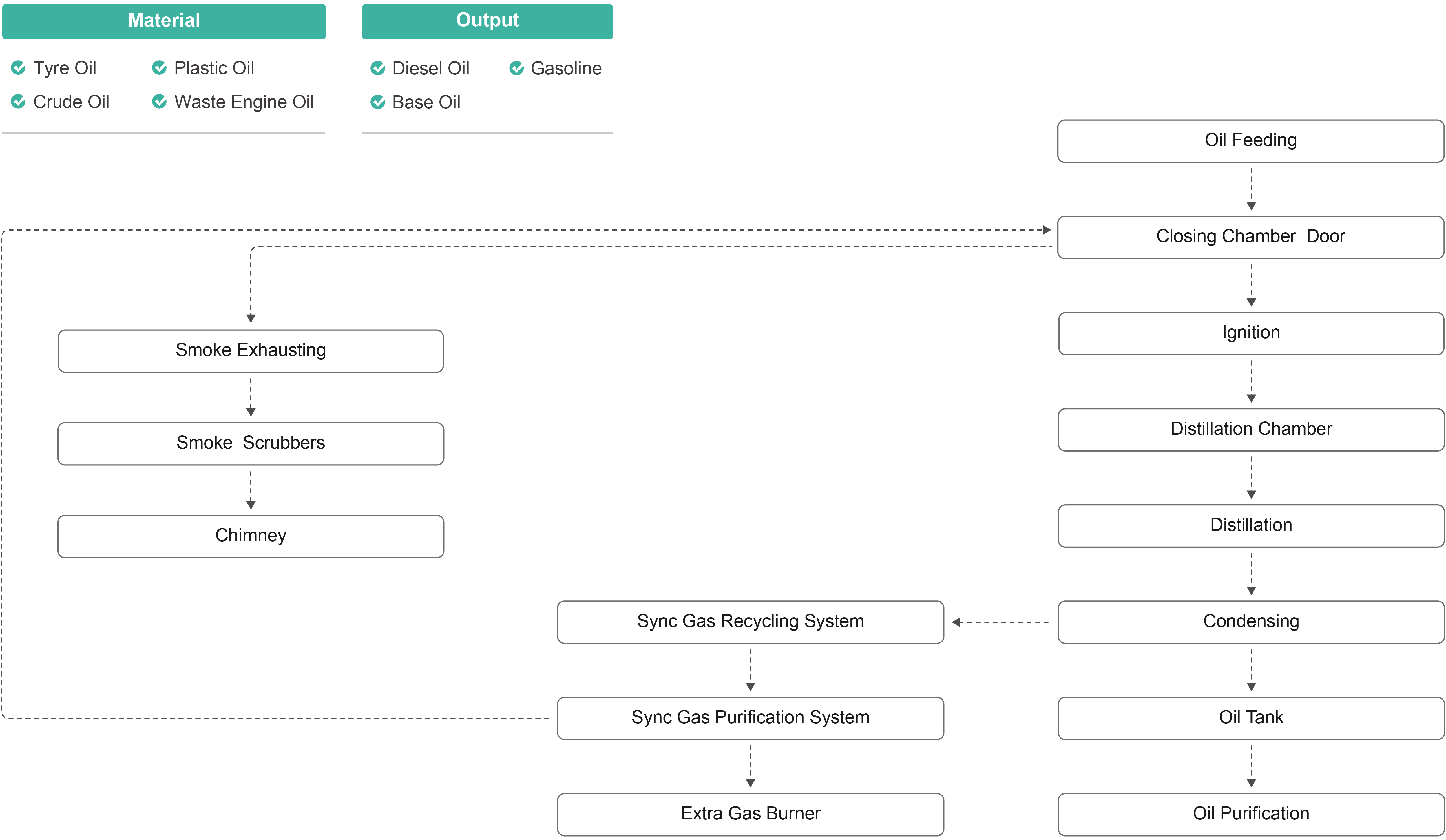

1. Direct Catalytic Distillation
Waste oil pumped into processor → catalytic heating vaporizes oil.
2. Vapor Reforming & Fractionation
Vapor reacts with catalysts → condenses → fractionates into base fuel oil.
3. Fuel Oil Refinement
Base oil undergoes sedimentation + filtration + chemical treatment + additive blending.
4. Self-Powered Gas Recycling
Non-condensable gas purified → fuels processor burner (30% energy saving).
5. Zero-Emission Flue Gas Treatment
Alkali spray neutralization → adsorption tower → clean discharge (EU-compliant).
Continuous High-Capacity Processing
Advanced technology enables large-scale 24/7 production.
Premium Output Quality
Strict process control ensures consistent fuel oil meeting ASTM standards.
Efficient Heating & Maintenance
Rapid non-stick heating walls minimize cleaning downtime.
Triple-Layer Safety
Submerged arc welding + ultrasonic NDT + dual alarm system.

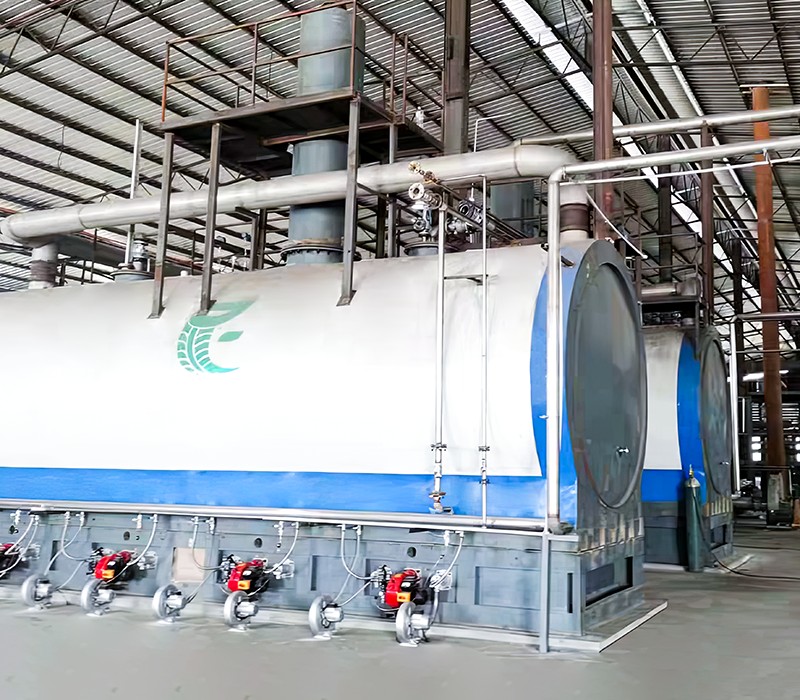

Patented Horizontal Design
99% conversion rate with optimized thermal efficiency.
National Patent Insulation
Energy-saving shell reduces heat loss by 30%.
High-Yield Condensing System
Enhanced cooling boosts oil output while extending service life.
Water-Film Dedusting Patent
Effective acid gas/dust removal compliant with ISO 7935.
Centralized Automation
Control desk monitors full production line in real-time.
|
Item |
Project |
|
Equipment Model |
DB |
|
Equipment Size |
Φ2500*8800；Φ2500*11000 |
|
Suitable Raw Materials |
Waste Engine Oil/Pyrolysis Oil |
|
Working Type |
Batch Type |
|
Structure Type |
Horizontal Static |
|
24-hour processing capacity |
5-8(ton); 8-10(ton) |
|
Working Pressure |
Normal Pressure |
|
Equipped Power (KW) |
20-30 |
|
Cooling Method |
Circulating Water cooling |
|
Oil Yield |
80%-90% |
|
Heating Method |
Direct heat/Hot air |
|
Installation |
No foundation/With foundation |
|
Noise |
<8S |
|
Gross Weight |
55； 60 |
|
Installation Size |
35m*20m |
|
Manpower Shift |
1-2 |
Oil Yield of Waste Plastic & Rubber Products
Determine the customized requirements
Latest blanking
Folding
Workpiece pairing
Welding
Assembly
Commissioning
Surface treatment
Quality inspection
Shipping
Cooperation model, equity share, and investment methods can be negotiated as needed.
Applicable to the situation where sufficient trust cannot be established in the early stage of cooperation; Cooperation term: Fixed term. Note: We directly participate in production to mitigate the risk of equipment failures during operation, the equipment's operational cycle and efficiency.
Conducts a feasibility analysis for the local market.
Provide necessary blueprints and solutions for factory construction as needed.
Provide all legal licenses and documents for local legal operation.
We can provide certain upstream and downstream raw materials and sales channels to establish an internal product distribution network.
Provide calculation and analysis based on the client’s local market. The client is responsible for providing relevant data. The client may also visit the offline factory for inspection.
The client provides installation tools, while we provide engineering guidance for installation and a complete set of onsite installation services.
1 year warranty + 3 to 5 years of maintenance service, with maintenance provided by local service providers.
Payment terms are negotiable, with flexible payment cycles for the balance. For example, 90% upfront, 10% balance, or 80% upfront, 20% balance.
The cooperation model and details will be discussed separately based on the region.
We ensure full supply, and we reserve the final right of interpretation. Commission and maintenance fees are negotiable.
Within 60 days after receiving the deposit.
The main payment method is T/T. For other payment methods, please contact us.
We have our own factory.
In Shangqiu City, Henan Province.
We provide customization services. For specific details, please contact us.
We support OEM and ODM.
We do not support sample customization service for now.
Workers do not need professional skills. We will offer working instruction manual, and our engineers will also provide on-site guidance for several months to help you with the commission and personnel training.

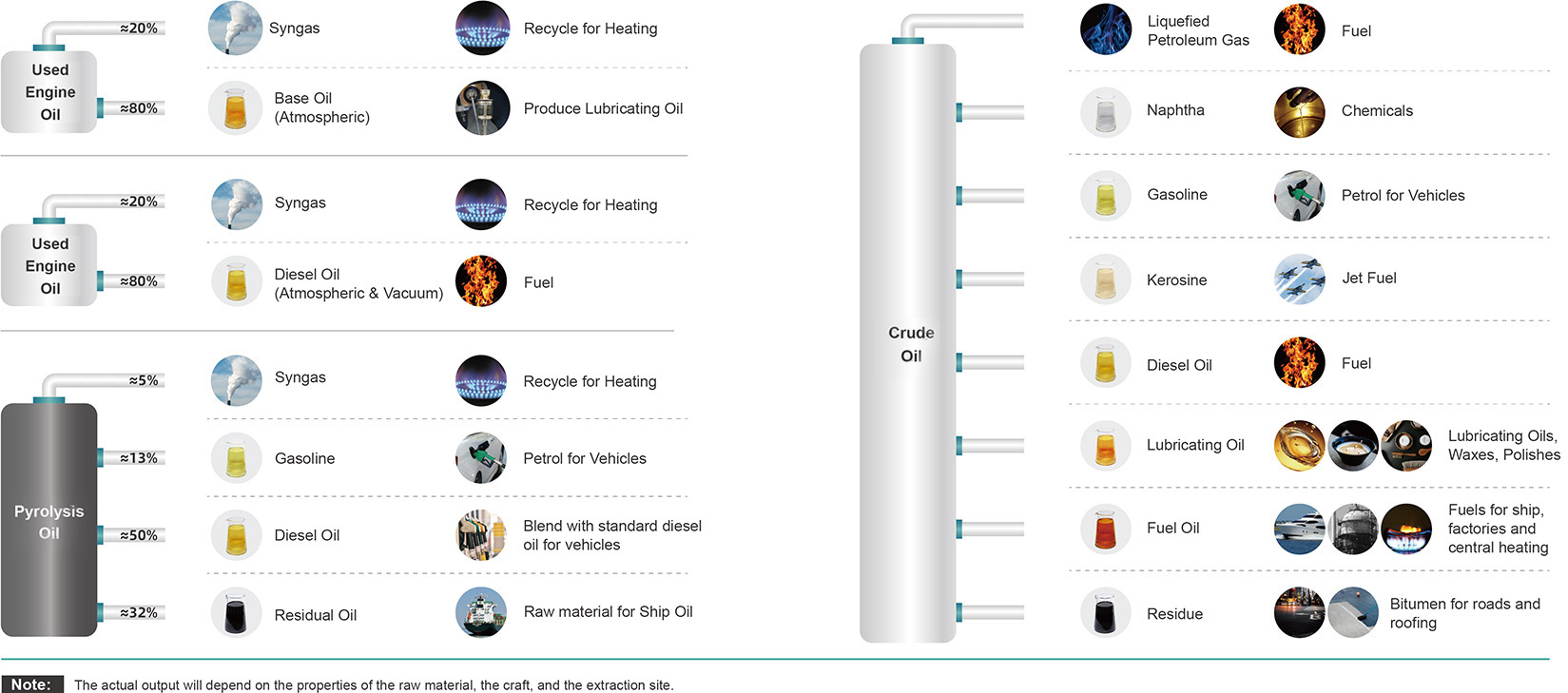

Engine oil is distilled into base oil. Pyrolysis oil is distilled and fractionated to obtain gasoline, diesel, and residual oil.
The capacity can be customized according to customer's requirements. Normally, a single line can do from 50kg to 50 tons. The oil yield and other products depend on the type of material processed. Please contact customer service for more details.
The quality of distillate diesel depends on the type of vehicle being used. It can typically be mixed with normal diesel at a ratio of 10%-20% for use in cars and trucks.
Usually, it takes in 60 days for manufacturing and the delivery depends on the port of arrival. Our port of departure is Lianyungang Port by default and customers can also designate the departure port.
Our warranty period is about 1 year which is also negotiable. We will provide the replacement parts, maintenance support, and instructions for use for workers. We have engineers for on-site installation support. Our engineer can arrive at your factory at any time after installation. It does not have a limitation of time.
Key information such as raw materials, daily processing capacity, project location, etc.
For each project, we will assign an exclusive project team, and there will be a dedicated person in charge to inform the project progress on time.
